CNC Accessories

Super High Speed Live Centers

BHS

Model:
041002(2BHS) / 041003(3BHS)
041004(4BHS) / 041005(5BHS)

  • Accuracy guaranteed to 0.002mm TIR(0.0001”).
  • Excellent for grinders and CNC lathes.
  • Heat-treated point to HRc 60±2
  • Three angular contact bearings for superior performance
  • Anti-friction seal for coolant deflectors and high speed
  • High RPM, up to 12,000
  • Heat-treated body for extra strength, rigidity and long life.

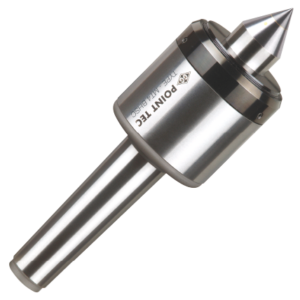

BHSC

Model:
042002(2BHSC) / 042003(3BHSC)
042004(4BHSC) / 042005(5BHSC)

  • Accuracy guaranteed to 0.002mm TIR(0.0001”).
  • Excellent for grinders and CNC lathes
  • Heat-treated point to HRc 90±5.
  • Three angular contact bearings for superior performance
  • Anti-friction seal for coolant deflectors and high speed
  • High RPM, up to 12,000
  • Heat-treated body for extra strength, rigidity and long life.
  • Drain hole have to be located on buttom side.

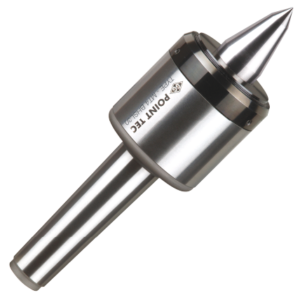

BHSL30

Model:
043002(2BHSL30) / 043003(3BHSL30)
043004(4BHSL30) / 043005(5BHSL30)

  • Accuracy guaranteed to 0.002mm TIR(0.0001”).
  • Excellent for grinders and CNC lathes.
  • Heat-treated point to HRc 60±2.
  • Three angular contact bearings for superior performance.
  • Anti-friction seal for coolant deflections and high speed.
  • High RPM, up to 12,000.
  • Heat-treated body for extra strength, rigidity and long life.
  • Drain hole have to be located on buttom side.

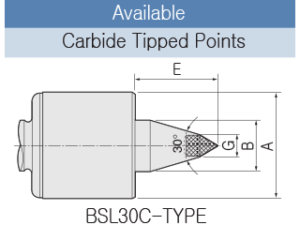

BHSL30C

Model:
044002(2BHSL30C) / 044003(3BHSL30C)
044004(4BHSL30C) / 044005(5BHSL30C)

  • Accuracy guaranteed to 0.002mm TIR(0.0001”).
  • Excellent for grinders and CNC lathes.
  • Heat-treated point to HRc 60±2.
  • Three angular contact bearings for superior performance.
  • Anti-friction seal for coolant deflections and high speed.
  • High RPM, up to 12,000.
  • Heat-treated body for extra strength, rigidity and long life.
  • Drain hole have to be located on buttom side.

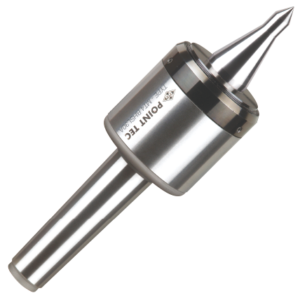

BHSL30A

Model:
045002(2BHSL30A) / 045003(3BHSL30A)
045004(4BHSL30A) / 045005(5BHSL30A)

  • Accuracy guaranteed to 0.002mm TIR(0.0001”).
  • Excellent for grinders and CNC lathes
  • Heat-treated point to HRc 60±2.
  • Three angular contact bearings for superior performance.
  • Anti-friction seal for coolant deflections and high speed
  • High RPM, up to 12,000.
  • Heat-treated body for extra strength, rigidity and long life.
  • Drain hole have to be located on buttom side.

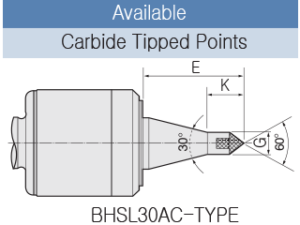

BHSL30AC

Model:
046002(2BHSL30AC) / 046003(3BHSL30AC)
046004(4BHSL30AC) / 046005(5BHSL30AC)

  • Accuracy guaranteed to 0.002mm TIR(0.0001”).
  • Excellent for grinders and CNC lathes
  • Heat-treated point to HRc 60±2.
  • Three angular contact bearings for superior performance.
  • Anti-friction seal for coolant deflections and high speed
  • High RPM, up to 12,000.
  • Heat-treated body for extra strength, rigidity and long life.
  • Drain hole have to be located on buttom side.
